SPINDLE
SHAPER 800 SERIES |
LS-800M
LS-800MS
LS-800T
LS-800TS
LS-800MD
LS-800MSD
|

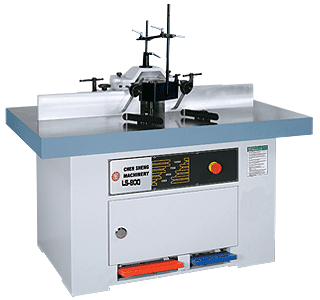

LS-800M
- Fixed table
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake

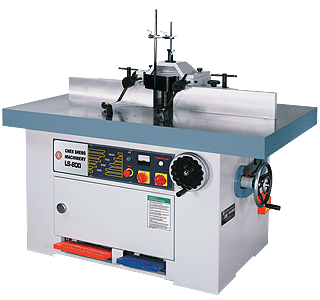

LS-800 T
- Tilting spindle
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake
LS-800MD
- Fixed table
- With digital position control
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake
|

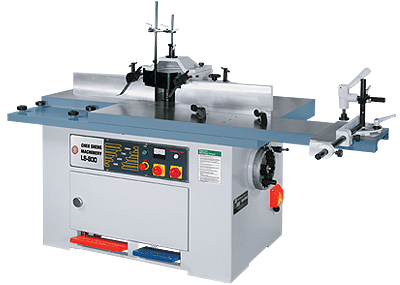

LS-800 MS
- Sliding table with guaranteed accuracy to 0.002"
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake
LS-800 TS
- Tilting spindle
- Sliding table with guaranteed accuracy to 0.002"
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake

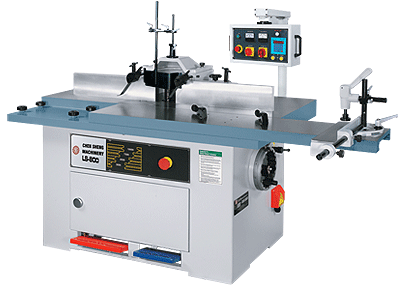

LS-800 MSD
- Sliding table with guaranteed accuracy to 0.002"
- With digital position control
- Table area 36-1/2" x 61" (920 mm x 1,550 mm)
- 10 HP motor (15 HP optional)
- Foot spindle lock
- Foot spindle brake
|
|
|
SPECIFICATIONS: |
| |
| MODEL |
LS-800M |
LS-800MS |
| Spindle diameter |
1", 1-1/4", 1-3/8", 1-1/2" (25.4, 30, 35, 40mm) Interchangeable |
| Spindle travel |
6-5/8" (170 mm) |
| Tilting angle |
- |
| Spindle speeds |
3000/4500/7500/10000 RPM (4 Speeds) |
| Spindle taper |
MK5 |
| Table size |
36-1/2" x 61" (920 mm x 1550 mm) |
| Sliding table size |
- |
13" x 61" |
| Sliding table stroke |
- |
54" |
| Table insert opening diameters |
3-15/16",6-3/4",8-1/4",10-1/4",13-1/4" (100,170,210,260,336mm) |
| Spindle capacity under nut |
4",5-1/2",5-1/2",5-1/2" (1",1-1/4",1-1/2",1-3/8" Spindle) |
| Table height |
35-1/2" |
| Fence size (L x W) |
1PC=23-1/2" x 5-3/4" (600 x 146 mm) x 2 |
| Motor horsepower |
10 HP (15 HP Opt.) |
| N.W. |
720 kgs |
745 kgs |
| G.W. |
820 kgs |
845 kgs |
| Packing dimensions |
65"(L) x 42"(W) x 52"(H) |
*
Specifications and design characteristics are subject to change without
prior notice.
| MODEL |
LS-800T |
LS-800TS |
| Spindle diameter |
1", 1-1/4", 1-3/8", 1-1/2" (25.4, 30, 35, 40mm) Interchangeable |
| Spindle travel |
6-5/8" (170 mm) |
| Tilting angle |
6-5/8" (170 mm) |
| Spindle speeds |
-5°~ 90°~ +45°
3000/4500/7500/10000 RPM (4 Speeds) |
| Spindle taper |
MK5 |
| Table size |
36-1/2" x 61" (920 mm x 1550 mm) |
| Sliding table size |
- |
13" x 61" |
| Sliding table stroke |
- |
54" |
| Table insert opening diameters |
3-15/16",6-3/4",8-1/4",10-1/4",13-1/4" (100,170,210,260,336mm) |
| Spindle capacity under nut |
4",5-1/2",5-1/2",5-1/2" (1",1-1/4",1-1/2",1-3/8" Spindle) |
| Table height |
35-1/2" |
| Fence size (L x W) |
1PC=23-1/2" x 5-3/4" (600 x 146 mm) x 2 |
| Motor horsepower |
10 HP (15 HP Opt.) |
| N.W. |
745 kgs |
835 kgs |
| G.W. |
845 kgs |
935 kgs |
| Packing dimensions |
65"(L) x 52"(W) x 52"(H) |
*
Specifications and design characteristics are subject to change without
prior notice.
| MODEL |
LS-800MD |
LS-800MSD |
| Spindle diameter |
1", 1-1/4", 1-3/8", 1-1/2" (25.4, 30, 35, 40mm) Interchangeable |
| Spindle travel |
6-5/8" (170 mm) |
| Tilting angle |
- |
| Spindle speeds |
3000/4500/7500/10000 RPM (4 Speeds) |
| Spindle taper |
MK5 |
| Table size |
36-1/2" x 61" (920 mm x 1550 mm) |
| Sliding table size |
- |
13" x 61" |
| Sliding table stroke |
- |
54" |
| Table insert opening diameters |
3-15/16",6-3/4",8-1/4",10-1/4",13-1/4" (100,170,210,260,336mm) |
| Spindle capacity under nut |
4",5-1/2",5-1/2",5-1/2" (1",1-1/4",1-1/2",1-3/8" Spindle) |
| Table height |
35-1/2" |
| Fence size (L x W) |
1PC=23-1/2" x 5-3/4" (600 x 146 mm) x 2 |
| Motor horsepower |
10 HP (15 HP Opt.) |
| N.W. |
745 kgs |
775 kgs |
| G.W. |
845 kgs |
875 kgs |
| Packing dimensions |
65"(L) x 46"(W) x 52"(H) |
*
Specifications and design characteristics are subject to change without
prior notice.
|
| |
