P R O D U C T S INDUSTRIAL SPINDLE SHAPERS 735 SERIES
LS-735M
LS-735MS
LS-735T
LS-735TS
LS-735L

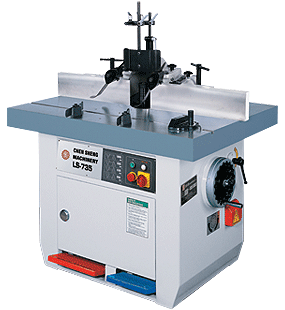

LS-735M PRODUCTION SERIES
  • Fixed table with miter slot
  • Table area 36-1/2" x 48" (930 x 1220mm)
  • 7.5 HP 3Ø/ Optional 10 HP

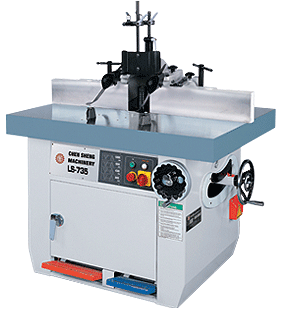

LS-735T INDUSTRIAL SHAPER SERIES
  • Tilting spindle model
  • Table area 36-1/2" x 48" (930 x 1220mm)
  • 7.5 HP motor (Optional 10 HP)










LS-735MS INDUSTRIAL SHAPER SERIES

  • Hand feed sliding table model
  • Table area 36-1/2" x 48" (930 x 1220mm)
  • 7.5 HP motor (Optional 10 HP)


LS-735TS INDUSTRIAL SHAPER SERIES

  • Tilting spindle with sliding table model (NSK #6004 bearings, with guaranteed accuracy to 0.002")
  • Table area 36-1/2" x 48" (930 x 1220mm)
  • 7.5 HP motor (10 HP opt.)
  OUTSTANDING FEATURES:


INTERCHANGEABLE SPINDLES:
 Choice of 4 spindle diameters- 1", 1-1/4", 1-3/8", 1-1/2" or choice of metric sizes- 25mm, 30mm, 35mm, 40mm. Spindle has MK5 taper to ensure precision fitting and allow quick changeover of another spindle.

QUICK CHANGE SPINDLE SPEEDS:
 The spindle is driven by four-speed pulley for spindle speeds of 3000, 4500, 7500 and 10000 RPM. Change of speed is quickly and easily accomplished by simply loosening a lock lever, and shifting the complete assembly.

FOOT SPINDLE LOCK:
The spindle is foot treadle locked for convenient cutter and spindle change.

FOOT SPINDLE BRAKE:
Treadle plate provides instant stop of the running spindle after power has been turned off.

REVERSIBLE SPINDLE ROTATION:
 The spindle is reversible to ensure safe rotation in clockwise or counter-clockwise direction.

ROUTING OPERTION:
 Optional collets can be supplied to enable the shaper do a routing application. Provides excellent flexibility all in one shaping system.

TILTING SPINDLE:
 The tilting spindle provides angle cutting from -5° ~ 90° ~+45°. Spindle tilting handwheel is located at front within easy reach. A tilt scale is attached for accurate angle setting. A locking handle anchors spindle into fixed angled position.

SPINDLE RAISING:
 The spindle is raised or lowered by a graduated handwheel, providing 0.04" elevation per full revolution of the handwheel. Quick clamp lever positively holds spindle at a required setting.

TABLE INSERTS:
 The spindle is fitted with 4 insert rings permitting for use of a wide variety of shaper cutters. Maximum insert opening diameter is 13-1/4", allowing use of insert cutterheads.

FENCE:
 Precision machined fence provides the accuracy demanded in complex shaping applications. The fences are supported by a massive cast iron body and integrated with a 5" cast iron dust shroud.
TABLE:
 The massive table is made from high quality cast iron (FC-25 grade), rib reinforced, and temper heat treated for maximum strength and wear resistance. Table surface is precision ground by milling and polished to 0.05mm flatness.

INTERCHANGEABLE MK5 PRECISION SPINDLES


QUICK CHANGE SPINDLE SPEED
The spindle is driven with four-speed pully, for spindle speeds of 3000, 4500, 7500 and 10,000 RPM. Change of speed is fast and easily made by simply loosening one locking lever and shifting the belt to the required speed.
SLIDING TABLE (ON LS-735MS, TS)


SPECIFICATIONS:

MODEL LS-735M LS-735T LS-735MS LS-735TS
Spindle Diameter 1", 1-1/4", 1-3/8", 1-1/2" (25.4, 30, 35, 40mm) Interchangeable
Spindle Travel 7" (180mm)
Tilting Angle — -5°~90°~+45° — -5°~90°~+45°
Spindle Speeds 3000 / 4500 / 7500 / 10000 rpm. (4 Speeds)
Spindle Taper MK5
Table Size 36-1/2" x 48" (930 x 1220mm)
Sliding Table Size not available 13" x 48" (330 x 1220mm)
Sliding Table Stroke not available 46" (1170mm)
Table Insert Opening Diameters (735M/MS) Ø3-15/16", 6-3/4", 8-1/4", 10-1/4", 13-1/4" (100, 170, 210, 260, 336mm)
Table Insert Opening Diameters (735T/TS) Ø8-1/4", 10-1/4", 13-1/4", (210,260,336mm)
Sindel Capacity Under Nut 4", 5-1/2", 5-1/2", 5-1/2" (1", 1-1/4", 1-1/2", 1-3/8" Spindle)
Table Height 35-1/2" (900mm)
Fence Size 23-1/2" x 5-3/4" (600 x 146mm)
Motor Horsepower 7.5 HP Ø3 / 10HP (optional)
N.W. 1430 lbs(650kgs) 1540 lbs(700kgs)
G.W. 1650 lbs(750kgs) 1760 lbs(800kgs)
Packing Dimensions 53"(L) x 42"(W) x 51"(H) 53"(L) x 52"(W) x 51"(H) 53"(L) x 42"(W) x 51"(H) 53"(L) x 52"(W) x 51"(H)
* Specifications and design characteristics are subject to change without prior notice.

STANDARD EQUIPMENT:
  • Magnetic switch with overload protection
  • Choice of one spindle size: Specify spindle diameter when ordering. (Optional spindles available)
  • Spring hold downs:
  • Vertical set of two pieces.
    Horizontal set of two pieces.
  • 4 Table inserts
  • Precision fence with 5" cast iron dust outlet
  • Reversing switch
  • Service tool kit
  • All electrical components are UL/CSA approved for U.S. market
  • Parts & Operations Books

LS-735L BASIC SPINDLE SHAPER WITH TENONER TABLE

  • The unit is identical to the LS-735M but is equipped with a 88" long tenoning table for maximum support of large parts and doors.
  • Telescopic front table extension wing facilitates maximum support of large doors, panels and timbers. (Extends to 28" from the main shaper table)

HIWIN 8 DIGITS LCD DISPLAY LS-735 series (OPTIONAL)
Upon request, LCD displays are available. These LCD displays accurately indicate spindle elevation amount and adjustment amounts of fence halves.


SPECIFICATIONS:
Model LS-735L
Spindle Diameter 1", 1-1/4", 1-3/8", 1-1/2", (25.4, 30, 35, 40mm) Interchangeable
Spindle Travel 7" (180mm)
Spindle Speeds 3000 / 4500 / 7500 / 10000 rpm (4 Speeds)
Spindle Taper MK5
Table Size 39" x 88" (980 x 2235mm) (with extension wings)
Table Insert Opening diameters Ø3-15/16", 6-3/4", 8-1/4", 10-1/4", 13-1/4" (100, 170, 210, 260, 335mm)
Table Height 35-1/2" (900mm)
Fence Size 23-1/2" x 5-3/4" (600 x 146mm)
Motor Horsepower 7.5 HP (10 HP opt.)
N.W. 1798 lbs (817 kgs)
G.W. 1975 lbs (898 kgs)
Packing Dimensions 91" (L) x 44" (W) x 51" (H)
* Specifications and design characteristics are subject to change without prior notice.

STANDARD EQUIPMENT:
  • Magnetic switch with overload protection
  • Choice of spindle size: Specify spindle diameter when ordering. (Optional spindles available)
  • Spring hold downs:
    Vertical set of two pieces.
    Horizontal set of two pieces.
  • 4 Table inserts
  • Precision fence with 5" cast iron dust outlet
  • 10 HP Motor with reversing switch
  • All electrical components are UL/CSA approved for U.S. market
  • Parts & Operations Books
  • Service tool kit
  • MK5 precision tapered spindle
