SPINDLE
SHAPER 625 SERIES |
LS-625M
LS-625MS
LS-625T
LS-625TS
|
LS-625M
- Fixed table with miter slot
- Table area: 41-3/8" x 31-1/2" (1050 x 800mm)
- 5HP 3Ø (7.5 HP opt.) motor
- Spindle foot brake

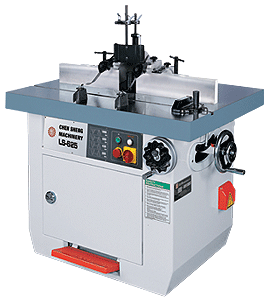

LS-625T
- Tilting spindle model
- Miter slot is standard
- Table area: 41-3/8" x 31-1/2" (1050 x 800mm)
-
5HP 3Ø (7.5 HP opt.) motor
- Spindle foot brake
|
LS-625MS
- Sliding table model
- Table area: 41-3/8" x 31-1/2" (1050 x 800mm)
- 5HP 3Ø (7.5 HP opt.) motor
- Spindle foot brake
LS-625TS
- Tilting spindle with sliding table system
- Table area: 41-3/8" x 31-1/2" (1050 x 800mm)
-
5HP 3Ø (7.5 HP opt.) motor
- Spindle foot brake
|
|
| |
OUTSTANDING
FEATURES: |
| |
| INTERCHANGEABLE
SPINDLES:
Choice of 3 spindle diameters- 3/4", 1",
1-1/4" or choice of metric sizes- 19mm, 25.4mm, 30mm.
Spindle has MK5 taper to ensure precision fitting for the
machines usable life, and guaranteed tolerance to 0.0008".
|
| QUICK
CHANGE SPINDLE SPEEDS:
The spindle is driven by four-speed pulley for
spindle speeds of 3000, 4500, 7500 and 10000 RPM. Change of
speed is quickly and easily accomplished by simply loosening
a lock lever, and shifting the belt to the required spindle
speed.
|
| REVERSIBLE
SPINDLE ROTATION :
The spindle is reversible to ensure safe rotation
in clockwise or counter-clockwise direction as well as providing
the ability of climb cutting panels.
|
| SPINDLE
RAISING:
The spindle is raised or lowered by a precision
graduated handwheel, providing 1mm elevation per full revolution
of the handwheel. Quick clamp lever positively holds spindle
at a set height for guarantee of repitition.
|
|
FOOT
SPINDLE BRAKE:
Treadle plate provides instant stop of the running
spindle after power has been shut off.
|
| TABLE
INSERTS:
The spindle is fitted with 2 insert rings (6-3/8"
& 8-5/8") permitting for use of a wide variety of
shaper cutters and spindle speeds.
|
| FENCE:
The fence assembly is attached with a 4"
diameter outlet dust hood. The fence halves can be precision
adjusted by micrometric adjustment knob with 0.008" graduation.
|
| TABLE:
The The massive table is made from high quality
cast iron, rib reinforced, and temper heat treated for maximum
strength and wear resistance. Table surface is precision ground
by milling and polished to 0.006" guarantee.
|
|
ROUTING OPERATION:
The MK5 taper on the spindle accepts a router
collet system, providing maximum flexibility all in one shaping
and routing machine. |
|
| |
 |
HIWIN 8 DIGITS LCD DISPLAY (OPTIONAL)
Upon request, LCD displays are available. These LCD displays accurately indicate spindle elevation amount and adjustment amounts of fence halves.
|
|
|
SPECIFICATIONS: |
| |
| MODEL |
LS-625M,
MS |
LS-625T,
TS |
| Spindle
Dia. |
3/4",
1", 1-1/4" |
| Spindle
Speed |
3000
/ 4500 / 7500 / 10000 rpm. |
| Taper
of Spindle |
MK5 |
| Sindle
Motor |
5
HP (7.5 HP opt.) |
| Spindle
Travel |
5" (130mm) |
| Spindle
capacity under nut |
3-1/4",
3-3/4", 4-1/2" (3/4", 1", 1-1/4" spindle) |
| Tilting
Angle |
— |
-5°~90°~+45° |
| Max.
Table Insert Diameter |
8-5/8"
(220mm) |
| Table
Size |
41-3/8"
x 31-1/8" (1050 x 800mm) |
| Table
Height |
35-1/2"
(900mm) |
| Sliding
Table Size |
1050
x 250mm |
| Sliding
Table Travel |
38"
(970mm) |
| Fence
Size |
4-15/16"
x 35-1/2" (125 x 900mm) |
| N.W. |
851
lbs(387kgs) |
906
lbs(412kgs) |
851
lbs(387kgs) |
906
lbs(412kgs) |
| G.W. |
900
lbs(409kgs) |
994
lbs(452kgs) |
900
lbs(409kgs) |
994
lbs(452kgs) |
| Packing
Dimensions |
48"(L)
x 37"(W) x 50"(H) |
48"(L)
x 46"(W) x 50"(H) |
*
Specifications and design characteristics are subject to change without
prior notice.
|
| STANDARD
EQUIPMENT: |
- Magnetic switch with overload protection
- Reversing switch
- Choice of spindle size: Specify spindle diameter when ordering. (Optional spindles available)
- Spring hold downs:
Vertical set of two pieces.
Horizontal set of two pieces.
- 2 Table inserts-(6-3/8" & 8-5/8")
- Precision fence with 4" cast iron dust outlet
- All electrical components are UL/CSA approved for U.S. market
- Parts & Operations Books
- Service tool kit
|
| |
