SPINDLE
SHAPER 525 SERIES |
LS-525M
LS-525MS
LS-525T
LS-525TS
|

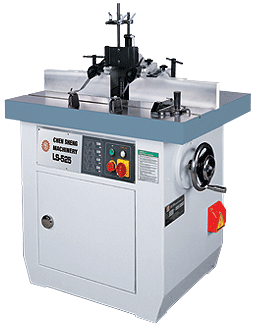

LS-525M
- Fixed table model
- Table area 700x900mm (27-1/2"x35-1/2")
- 5HP 3Ø (7.5 HP opt.) motor are standard

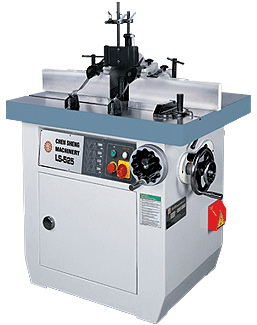

LS-525T
- Tilting spindle model
- Table area 700x900mm (27-1/2"x35-1/2")
-
5HP 3Ø motor
|

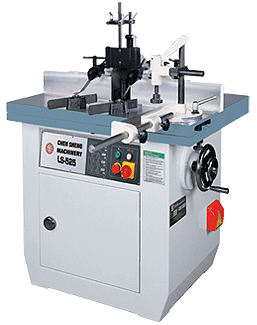

LS-525MS
- Sliding table model
- Table area 700x900mm (27-1/2"x35-1/2")
- 5HP 3Ø (7.5 HP opt.) motor with magnetic controls

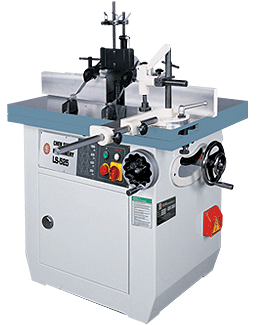

LS-525TS
- Tilting spindle with integrated sliding table model
- Table area 700x900mm (27-1/2"x35-1/2")
-
5HP 3Ø motor
|
|
| |
OUTSTANDING
FEATURES: |
| |
| INTERCHANGEABLE
SPINDLES:
Choice of 3 spindle diameters (3/4", 1",
1-1/4") or choice of metric sizes- 19mm, 25.4mm, 30mm.
Spindle has MK5 taper to ensure precision fitting and allow
quick changeover.
|
| QUICK
CHANGE SPINDLE SPEEDS:
The spindle is driven by a four-speed dynamically
balanced pulley for spindle speeds of 3000, 4500, 7500 and
10000 RPM. Change of speed is quick and easily accomplished
by simply loosening a lock lever, and shifting the belt to
the required speed setting.
|
| REVERSIBLE
SPINDLE ROTATION :
The spindle is reversible to ensure safe rotation
in clockwise or counter-clockwise direction as well as providing
the ability to climb cut glued panels.
|
| SPINDLE
RAISING:
The spindle is raised or lowered by a graduated
handwheel, providing 1mm elevation per full revolution. Quick
clamp lever positively holds spindle at a set height.
|
| TABLE
INSERTS:
The spindle is fitted with 2 insert rings (6-3/8"
& 8-5/8") permitting for use of a wide variety of
shaper cutters and spindle speeds.
|
| FENCE:
The fence assembly is attached with a 4"
diameter outlet dust hood. The fence halves can be precision
adjusted by micrometric adjustment knob with 0.008" graduation.
|
| TABLE:
The massive table is made from high quality cast
iron (FC-25 grade) and undercast ribbing is engineered for
maximum strength and long term table stability. Table surface
is precision ground and polished.
|
|
ROUTING OPERATION:
The MK5 taper on the spindle accepts a router
collet system, providing maximum flexibility all in one shaping
and routing machine. |
|
| |
 |
HIWIN 8 DIGITS LCD DISPLAY (OPTIONAL)
Upon request, LCD displays are available. These LCD displays accurately indicate spindle elevation amount and adjustment amounts of fence halves.
|
|
|
SPECIFICATIONS: |
| |
| MODEL |
LS-525M,
MS |
LS-525T,
TS |
| Spindle
Dia. |
3/4",
1", 1-1/4" (19mm, 25.4mm, 30mm) |
| Spindle
Speed |
3000
/ 4500 / 7500 / 10000 rpm. |
| Taper
of Spindle |
MK5 |
| Sindle
Motor |
5
HP (7.5 HP opt.) |
| Spindle
Travel |
130mm
(5") |
| Spindle
capacity under nut |
3-1/4",
3-3/4", 4-1/2" (3/4", 1", 1-1/4" spindle) |
| Tilting
Angle |
— |
-5°~90°~+45° |
| Max.
Table Insert Diameter |
220mm
(8-5/8") |
| Table
Size |
700
x 900mm (27-1/2" x 35-1/2") |
| Table
Height |
900mm
(35-1/2") |
| Sliding
Table Size |
900
x 230mm (35-1/2" x 9") |
| Sliding
Table Travel |
830mm
(32-1/2") |
| Fence
Size |
125
x 900mm (4-15/16" x 35-1/2") |
| N.W. |
695
lbs(316kgs) |
744
lbs(338kgs) |
695
lbs(316kgs) |
744
lbs(338kgs) |
| G.W. |
854
lbs(388kgs) |
915
lbs(416kgs) |
854
lbs(388kgs) |
915
lbs(416kgs) |
| Packing
Dimensions |
42"(L)
x 38"(W) x 50"(H) |
42"(L)
x 42"(W) x 50"(H) |
*
Specifications and design characteristics are subject to change without
prior notice.
|
| STANDARD
EQUIPMENT: |
- Magnetic switch with overload protection
- Reversing switch
- Choice of spindle size: Specify spindle diameter when ordering. (Optional spindles available)
- Spring hold downs:
- Vertical set of two steel shoes.
- Horizontal set of two steel shoes.
- 2 Table inserts-(6-3/8" & 8-5/8")
- Precision fence with 4" cast iron dust outlet
- Service tool kit
- All electrical components are UL/CSA approved for U.S. installation
- Parts & Operations Books
|
| |
