SPINDLE
SHAPER |
LS-305
LS-406 |

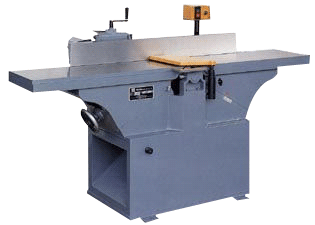

LS-305/406
The
Chen Sheng 12" & 16" Hand Jointer is designed
and built to satisfy users including sash and door producers,
pattern and cabinet shops and others. |
|
| |
OUTSTANDING
FEATURES: |
| |
| SAFETY
SWING AWAY GUARD:
Practical design of cutterhead guard gives you maximum
coverage of cutter knives at all times.
|
| TILTING
FENCE:
Tilt and positively locks at any angle form 45° to
90°. Cutterhead at rear of fence fully guarded in all
fence positions.
|
| CUTTERHEAD:
4" in diameter, equipped with 3 high speed steel
knives, precision ground and balanced.
|
| TABLES:
Adjustable infeed and outfeed tables are mounted on dove-tailed
ways. Outfeed table is recessed for rabbeting. Both infeed
and outfeed tables are quickly and accurately raised and lowered
with convenient handwheel. Easy-to-read scale shows exact
depth of cut. Hand knob locks table at desired setting.
Basic machine furished with set of 3 hig-speed steel knives,
tilting fence, safety cutterhead guard, motor and magnetic
switch. |
|
|
SPECIFICATIONS: |
| |
|
MODEL |
LS-305 |
LS-406 |
|
Table
surface |
12"
x 72" (305x1829mm) |
16"
x 84" (406x2134mm) |
|
Cutting
circle |
4"
(102mm) |
4"
(102mm) |
|
Cutterhead
speed |
5200
RPM |
5200
RPM |
|
Number
of knives |
3 |
3 |
|
Knife
cuts speed |
15600
cuts per minute |
15600
cuts per minute |
|
Maximum
depth of cut |
3/4"
(19mm) |
3/4"
(19mm) |
|
Working
height |
32"
(813mm) |
32"
(813mm) |
|
Fence
size |
5"
x 45" (127x1143mm) |
5"
x 45" (127x1143mm) |
|
Fence
tilt |
0-45° |
0-45° |
|
Motor
horsepower |
3HP |
5HP |
|
Net
weight |
380kgs |
500kgs |
|
Gross
weight |
500kgs |
650kgs |
|
Packing
dimension |
78"
x 30" x 42" |
90"
x 36" x 42" |
*Specifications
subject to change without notice.
|
|
