TILTING
ARBOR SAW |
LS-12
LS-14
LS-16 |
|
LS-12/14/16

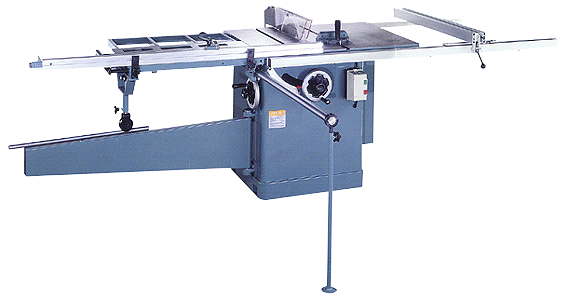

shown sawblade, sliding table, optional.
Optional: Mesa para alimentar
Handles big jobs quickly, easily
and accurately at economical prices.
As a major manufacturer for more than a decade, we have developed
and manufactured a wide series of tilting arbor saws, with
capacities from 10" to 16". Sound engineering and
rugged construction keep our saws working reliably and efficiently,
decreasing downtime and labor costs to keep your line working
smoothly.
|
|
| |
OUTSTANDING
FEATURES: |
| |
- Heavy
duty cast iron table is precision ground for accuracy.
- Anti-kickback
safety guard.
- Ruggedly
constructed machine frame provides maximum stability.
- Choice
of two types of sliding table 3' x 6' or 4' x 8' (optional).
- Dual
English / Metric scale guide rail.
- Extra
long guide rail.
- Overload
protected magnetic switch.
- Mesa
de precision para trabajo pesado.
- Protector
anti rebote.
- Maquina
construida con bastidor aspero para maxima estabilidad.
- Opcional:
Eleccion de dos tipos de mesas de alimentacion-3' x 6' or
4' x 8'.
- guia
con escala dula (lngles / Metrica). Guia Extralarga.
- Interruptor
magnetico para sobrecargas.
|
 |
- Sliding
table rides on two ball bearings and v-wheel which is guided
by a precision ground steel bar for smooth travel.
- Cross
cut fence has a built in scale together with stops for panel
sizing. Also includes a length stop.
- Capacity:
3' x 6' (TC-10, TC-10L) 4' x 8' (TC-10L, 12, 14, 16).
|
|
-
ew type fence assembly slides on the front and rear guide
rail smoothly by means of a plastic pad.
- Single
clamp handle locks fence to front guide rail. Parallelism
to the sawblade is conveniently adjusted by screw.
- Guide
rail is calibrated in inches and millimeters, and has a
magnifier for good visibility.
|
| |
 |
-
Saw arbor is supported by one piece housing.
- Saw
arbor runs on three totally enclosed life ball bearings.
- Large,
easily operated handwheels for blade tilting, raising and
lowering, with positive lock knobs.
|
|
|
SPECIFICATIONS: |
| |
|
MODEL |
LS-12 |
LS-14 |
LS-16 |
|
Diameter
saw blade |
12"
(305mm) |
14"
(305mm) |
16"
(405mm) |
|
Max.
depth of cut (at 90°) |
4"
(101.6mm) |
5"
(125mm) |
5-1/2"
(140mm) |
|
Max.
depth of cut (at 45°) |
2-3/4"
(70mm) |
3-1/2"
(88mm) |
3-7/8"
(98mm) |
|
Arbor
diameter |
1"
(30mm optional) |
1"
(30mm optional) |
1"
(30mm optional) |
|
Arbor
speed |
4000
rpm |
3750
rpm |
3750
rpm |
|
Table
size |
48"
x 30" ( 1220x762mm) |
48"
x 38" ( 1220x965mm) |
48"
x 38" ( 1220x965mm) |
|
Table
height |
34-1/4"
(857mm) |
34-1/4"
(857mm) |
34-1/4"
(857mm) |
|
Sliding
table capacity |
4'
x 8' (1220 x 2440mm) |
4'
x 8' (1220 x 2440mm) |
4'
x 8' (1220 x 2440mm) |
|
Max.
rip to right of blade |
50"
(1270mm) |
50"
(1270mm) |
50"
(1270mm) |
|
Motor |
3HP
(5HP Optional) |
5HP
(7.5HP Optional) |
7.5HP
(10HP Optional) |
|
Net
weight |
572
lbs (260 kgs) |
847
lbs (385 kgs) |
869
lbs (395 kgs) |
|
Gross
weight |
704
lbs (320 kgs) |
1012
lbs (460 kgs) |
1034
lbs (470 kgs) |
|
Packing
size |
32"
x 36" x 42" |
37"
x 44" x 42" |
37"
x 44" x 42" |
*Specifications
subject to change without notice.
|
| STANDARD
ACCESSORIES: |
|
| Fence
and rail assembly |
1 set |
| Overload
protected magnetic switch |
1 set |
| Miter
gauge |
1 set |
| Anti-kickback
safety guard |
1 set |
| Tool
kits |
1 set |
Metal saw
guard (OPTIONAL)
European type
Opcional: Protector de sierra
metalica (Sistema Europeo) |
|
| OPTIONAL
ACCESSORIES: |
|
- Sliding
table assembly
- T.C.T. saw
blade
- Arbor extension
for dado and dado insert
- Hold-down
clamp for sliding table
- Metal saw
guard with riving knife (European type)
- Overarm saw
guard with riving knife (Suva type)
- U.L. or CSA
approved model
Overarm
saw guard (OPTIONAL)
suva type
OPcional: Carcasa protectora de
sierra (Sistema Suva)
|
|
|
