SPINDLE
SHAPER 101 SERIES |

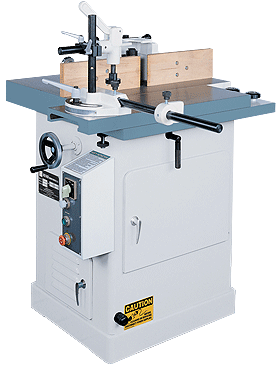

LS-101
LS-101S
|

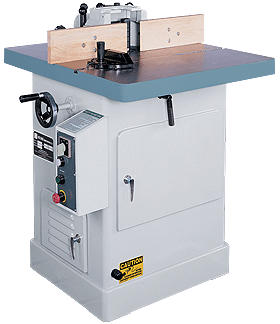

LS-101
|
LS-101S
- SLIDING TABLE MODEL
- Supported by (6) precision roller bearings
|
|
| |
OUTSTANDING
FEATURES: |
| |
| TABLE:
32" x 27-1/2" is made of cast iron, rib reinforced
for maximum rigidity, surface ground. Removable 5-1/2"
(140mm) insert makes possible the ability to safely undercut
panels and parts. This feature is especially desirable for
Raised Panel Cuts.
|
|
BASE:
Table is supported by a heavy gauge steel cabinet with clean-out
door.
|
| FENCE:
The cast iron fence is precision machined and faced with hardwood
blocks. Fence may be easily adjusted to any position by locking
handles, and can be removed for free-hand shaping.
|
| INTERCHANGEABLE
SPINDLES:
Spindle is precision mated with precision ball bearings. Choice
of (1) spindle (1/2", 3/4", 1", 1-1/4").
|
| SPINDLE
SPEED:
The spindle is driven by a two-speed "V" pulley
, for spindle speeds of 7,500 & 10,000 RPM, the correct
speeds for both large and small diameter cutters. An optional
router spindle is designed to accept collets for router bits,
making this unit exceptionally versatile.
|
| MITER
GAUGE:
For straight and angle operations.
Has 3/8" x 3/4" x 16" guide bar and cast aluminum
body with cursor and calibrations scale.
|
|
|
SPECIFICATIONS: |
| |
|
Model |
LS-101 |
LS-101S |
Spindle
Capacity:
3/4" (19.05mm) (under nut)
1" (25.4mm) (under nut)
1-1/4" (31.75mm) (under nut) |
3"
(76.2mm)
4" (101.6mm)
4-1/2" (114.3mm) |
3"
(76.2mm)
4" (101.6mm)
4-1/2" (114.3mm) |
|
Spindle
Travel |
3"
(75mm) |
3"
(75mm) |
|
Spindle
Speeds |
7,500
& 10,000 rpm (2 Speeds) |
7,500
& 10,000 rpm (2 Speeds) |
|
Sliding
Table Size |
— |
27-1/4"
x 9" |
|
Sliding
Table Storke |
— |
19-5/8"
(500mm) |
|
Table
Size |
32"
x 27 1/2" (813 x 698mm) |
32"
x 27 1/2" (813 x 698mm) |
|
Table
Height |
34"
(863mm) |
34"
(863mm) |
|
Table
Insert Opening Diameter |
5-1/2"
(140mm) |
5-1/2"
(140mm) |
|
Fence
Size (each side) |
4-1/2"
x 13" (115 x 330mm) |
4-1/2"
x 13" (115 x 330mm) |
|
Motor |
3HP
(5HP, 7.5HP opt.) |
3HP
(5HP, 7.5HP opt.) |
|
N.W. |
460
lbs (209 kgs) |
480
lbs (218 kgs) |
|
G.W. |
520
lbs (236 kgs) |
540
lbs (245 kgs) |
|
Packing
Dimensions |
34"
(L) x 34" (W) x 44" (H) |
34"
(L) x 34" (W) x 44" (H) |
*
Specifications and design characteristics are subject to change without
prior notice.
|
| STANDARD
EQUIPMENT: |
- Choice of spindle size: 1/2", 3/4", 1", 1-1/4"
- Solid spindle and quill assembly
- Control panel with magnetic overload protection
- Industrial duty UL/CE motor
- Table insert
- Cast iron fence with 4" dust outlet
- Miter gauge
- Wrenches
- Operations and parts book
|
| OPTIONAL
EQUIPMENT: |
- Optional spindles available: 1/2", 3/4", 1", 1-1/4"
- Solid router spindle assembly wth 1/4", 3/8", & 1/2" collets
- Integrated sliding table system
|
| |
