SPRIAL CUTTERHEAD The series of planer is equipped with an oversized sprial cutterhead. This provides high chip removal rate, superior surface finish and extremely low noise while cutting. manufactured from alloy steel, the sprial cutterhead is precision machined, tempered, dynamically balanced and precision ground. Fouredge tungsten carbide knife inserts are fitted in the helical slots of the cutterhead.

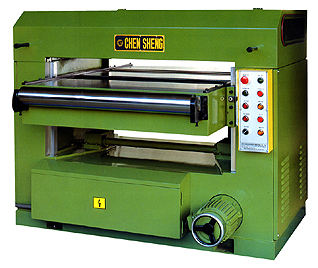

	LS-1000: Cut stock 40" wide, 20HP
	LS-1300: Cut stock 52" wide, 25HP
Quality features that makes the unit ideal to perform extra heavy cutting!

FEATURES:

• Big horsepower 20 or 25 HP, especially suited for heavy cutting and high production requirement.
• Maximun depth of cut 3/8" (9.5mm).
• Big cutterhead diameter 5 7/8" (145mm).
• Safety type cutterhead, fitted with 4 H.S.S. knife.
• Power driven table rolls.
• Power driven table raising and lowering.
• Built with support roll at table front that facilitate initial feeding of stock.
• Infinitely variable feed speed from 5 to 15 meters per minute.
• Shaving hood with 3 outlets, 4" in diameter, gives fully dust suction effect.
• See-through side window for fully visible of feeding and for convenient adjustment of top feed rolls.
• 2 hand lever provides easy lifting of top cover.



GEAR DRIVE Heavy pitch gears provides smooth, dependable feed driving.	TWO OUTFEED ROLLS Eliminate single outfeed roll, the LS-1000 and LS-1300 equipped with 2 big outfeed rolls, 4" in diameter.
SLIDE WAY CUBRICATION The hand lubricator delivers oil to frame-table side ways at front and rear.	POWER DRIVEN TABLE ROLLS Synchronized top and table feed rolls. That assures smooth, trouble-free stock feed particularly helpful while in extra heavy cutting operations.

SPECIFICATIONS:
